dasso CTECH
Sustainable Class 0 fire-rated bamboo : Dasso CTECH: highly durable and resistant to weather, mould, soft rot, and insects.
What is dassoCTECH?
Dasso CTECH offers a sustainable and long-lasting decking option made from bamboo, a renewable and eco-friendly resource. The material is created through a compression molding process that fuses the bamboo fibers together, resulting in a weather-resistant and attractive wood-like appearance. Installation and maintenance are easy, and the product is available in a variety of colors and finishes to match any design style. Additionally, using bamboo has a low environmental impact, making Dasso CTECH a smart choice for those looking to support a healthier planet.
dasso ctech KEY FEATURES

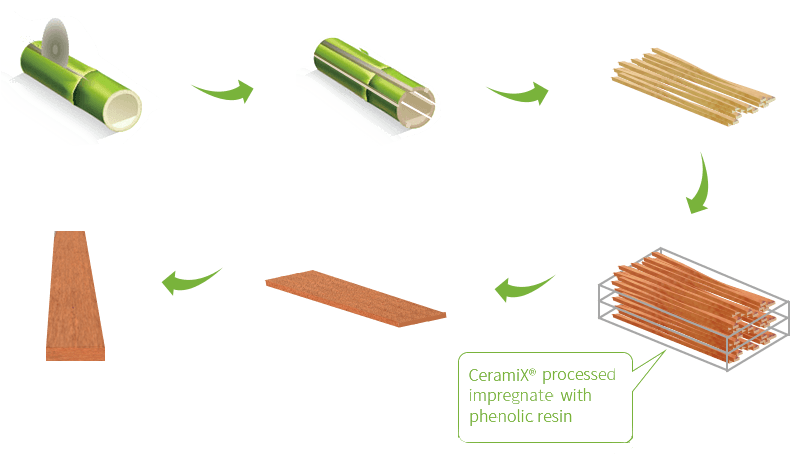

Dasso CTECH is a type of decking material that is made from bamboo, which is a highly sustainable and renewable resource. The material is created using a process called compression molding, which makes it highly durable and resistant to weather, mould, soft rot, and insects.
Termite Resistance
- DC D (EN117)
- Class 1 (AS 5604)
Biological Durability
- Class 1 (EN 350:2016)
Carbon Footprint
- -2.1 KG CO2 EQ
Fire Resistance
- B, s1, d0 (EN 13501-1)
Mould Resistance
- Class 0 (EN ISO 846)
Release of Formaldehyde
- E1 (0.17mg/L) (GB/T17657-2013)
Warranty
25 years for Commercial and residential
Our Dasso CTECH decking products come with a 25-year warranty that covers defects in manufacturing, such as cracking, splitting, warping, and rotting. While we are confident in the superior performance of our decking products, we understand that unexpected issues can arise. We offer this warranty to guarantee our commitment to providing a high-quality product. If you have any questions about our warranty, please don't hesitate to contact us.
Decking
- Superior choice for all exterior decking applications
Cladding
- Best for commercial exterior cladding
Soffit
- Designed for interior and exterior use

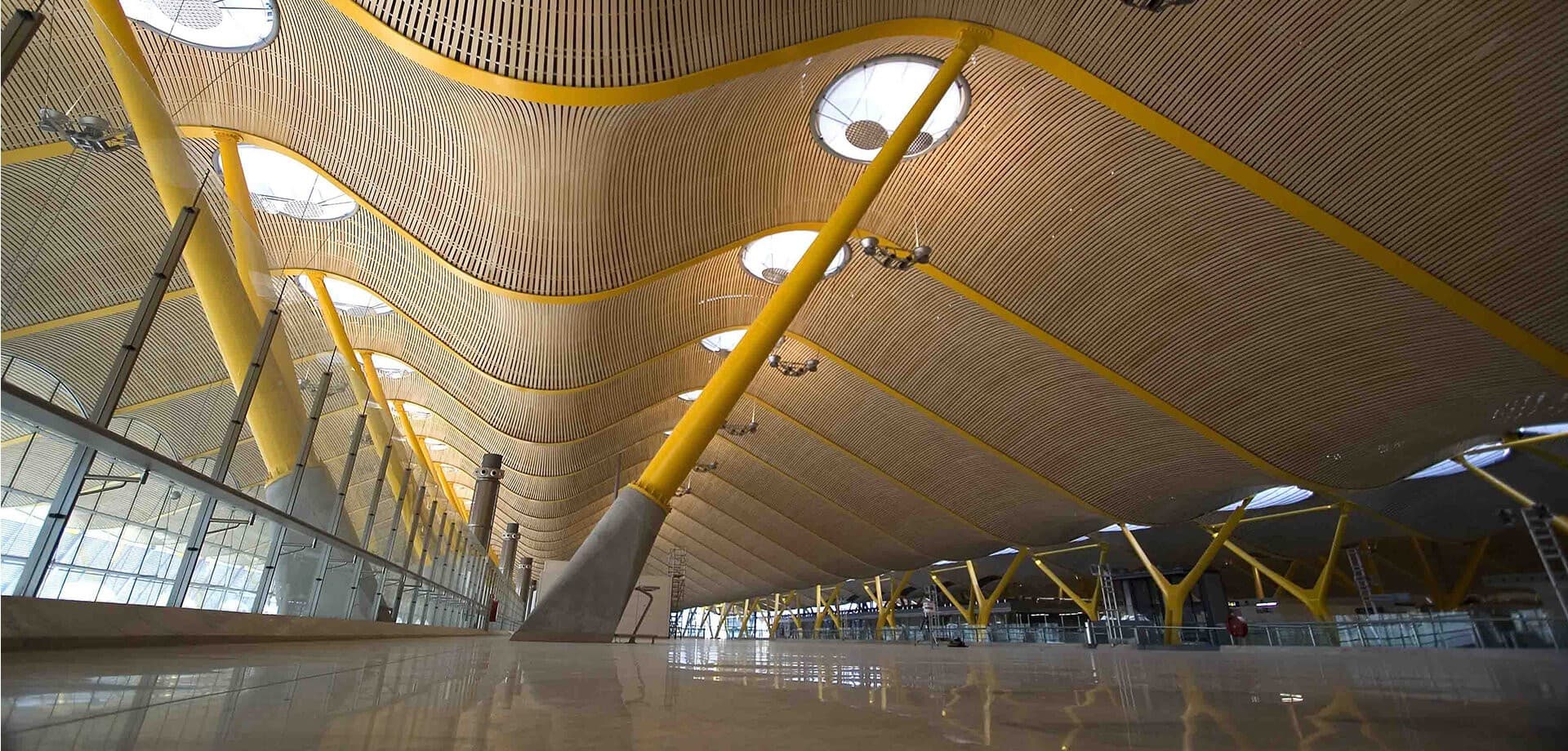

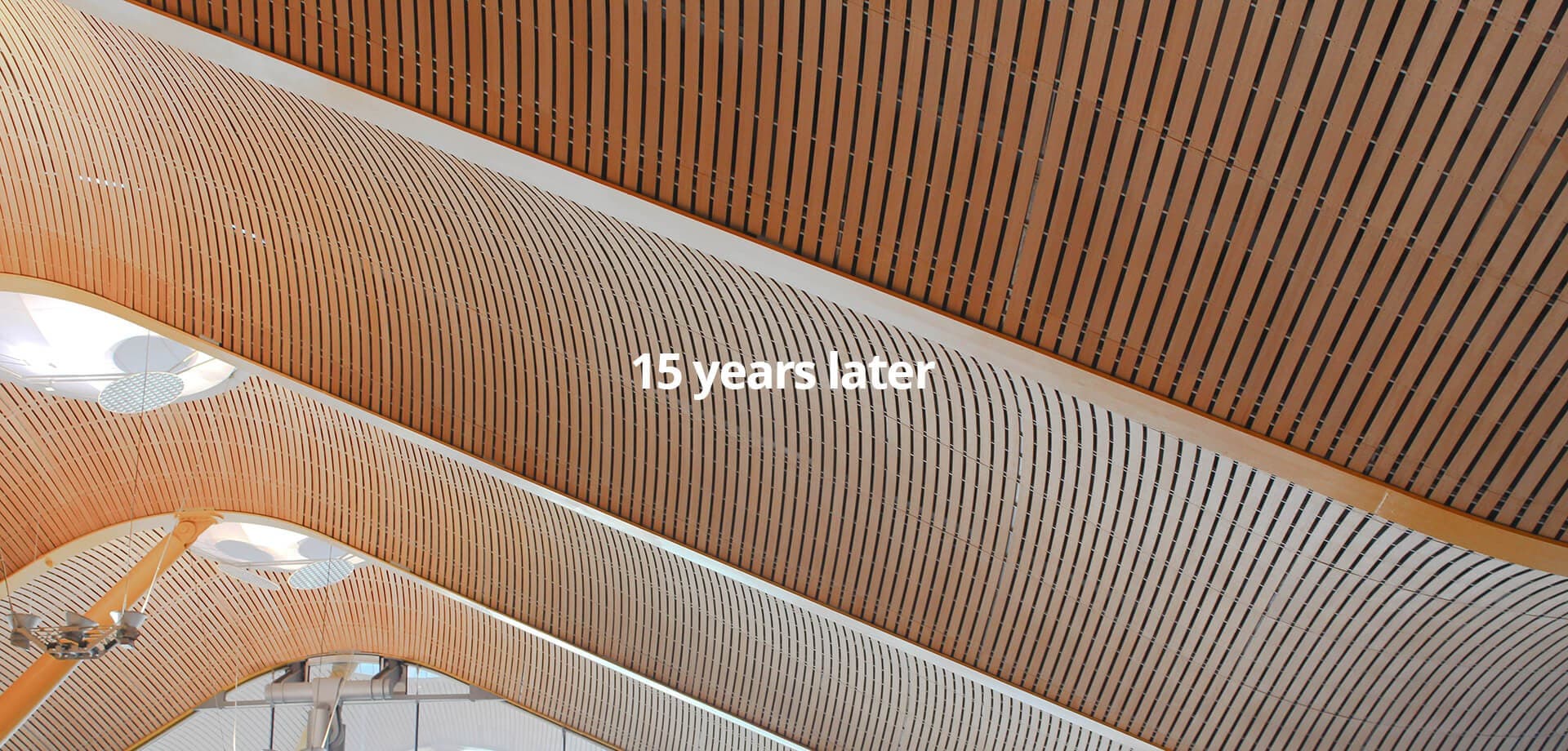

Madrid Barajas Airport

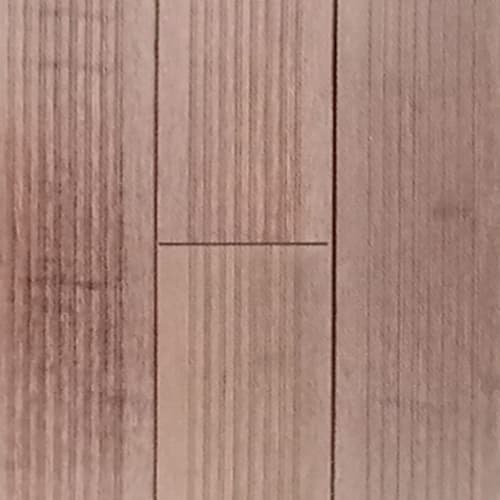

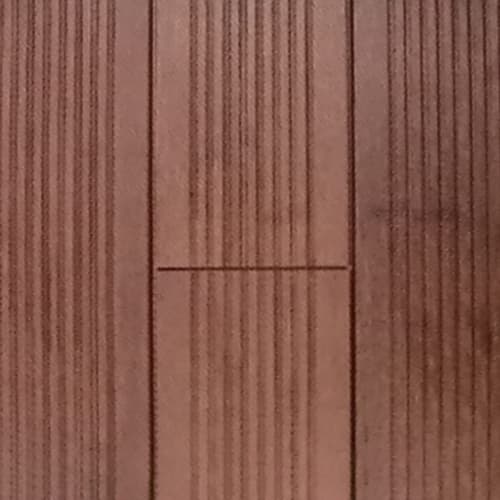

Weathering
Download
Technical Data
Fabricated from non-combustible materials
- Bamboo 85%
- Phenolic Resin: 15%
Size
- Thickness: 20mm
- Width: 137 / 178
- Length: 1850 / 3050
Tolerance
- Length: ± 0,5mm
- Width: ± 0,2mm
- Thickness: ± 0,15mm
- T&G: ± 0,1mm
Dimensional stability
- EN 15534-1
- Thickness: 4%
- Wdith: 0.6%
- Length: 0%
Density
- 1200 kg/m3
Stiffness MOE
- 16700 N/mm2
Moisture content
- 8…12 %
Hardness
- Janka hardness: 17660
- DIN EN 1534: 79.2 N/mm2
- Brinell > 9.5kg/mm2 (EN 1534)
Slip resistance (flat)
Slip resistance (reed)
- DIN 51097: 19° - B
- DIN 51097: 22° - B
Reaction to fire
- B, s1, d0 (EN 13501-1)
- Class A (ASTM E84)
Static bending strength
- 73.8N/ mm2 (DIN EN 408)
Warping
- ≤ 6mm and quantity is less than 10%
Bowing
- ≤ 1mm along the length of the panels
Bamboo Nodes
- Nodes are separated its width ≤ 10mm
Height difference
- ≤ 0.5mm
About Decking

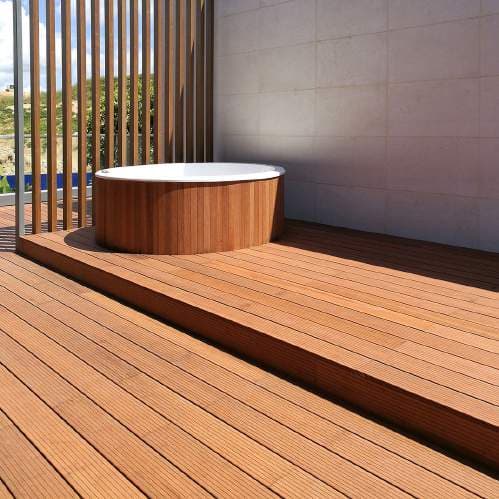

Decking

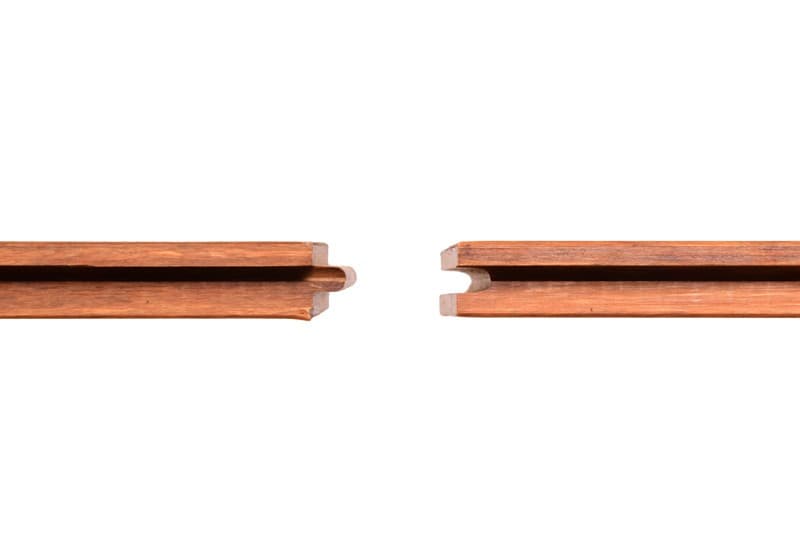

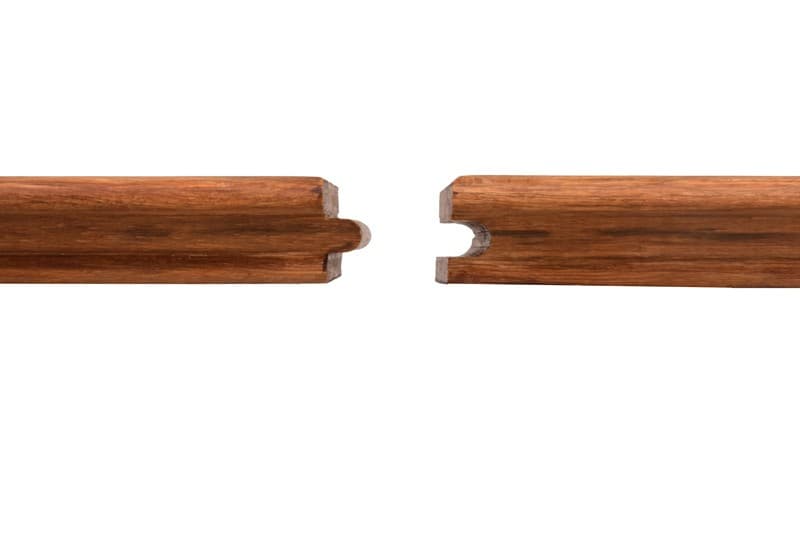

DassoCTECH Decking is a popular choice for exterior decking applications worldwide. It only requires two decking profiles, and all our deck planks also include our exclusive tongue & grooved end matched system to attach the planks seamlessly.
Decking Project Reference

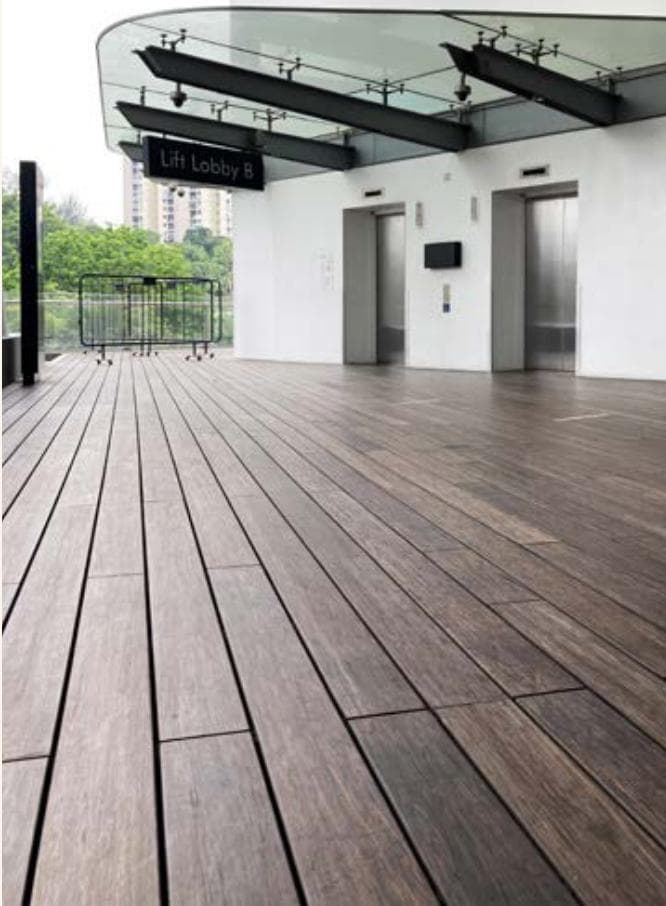

Star Terrace @ Star Vista

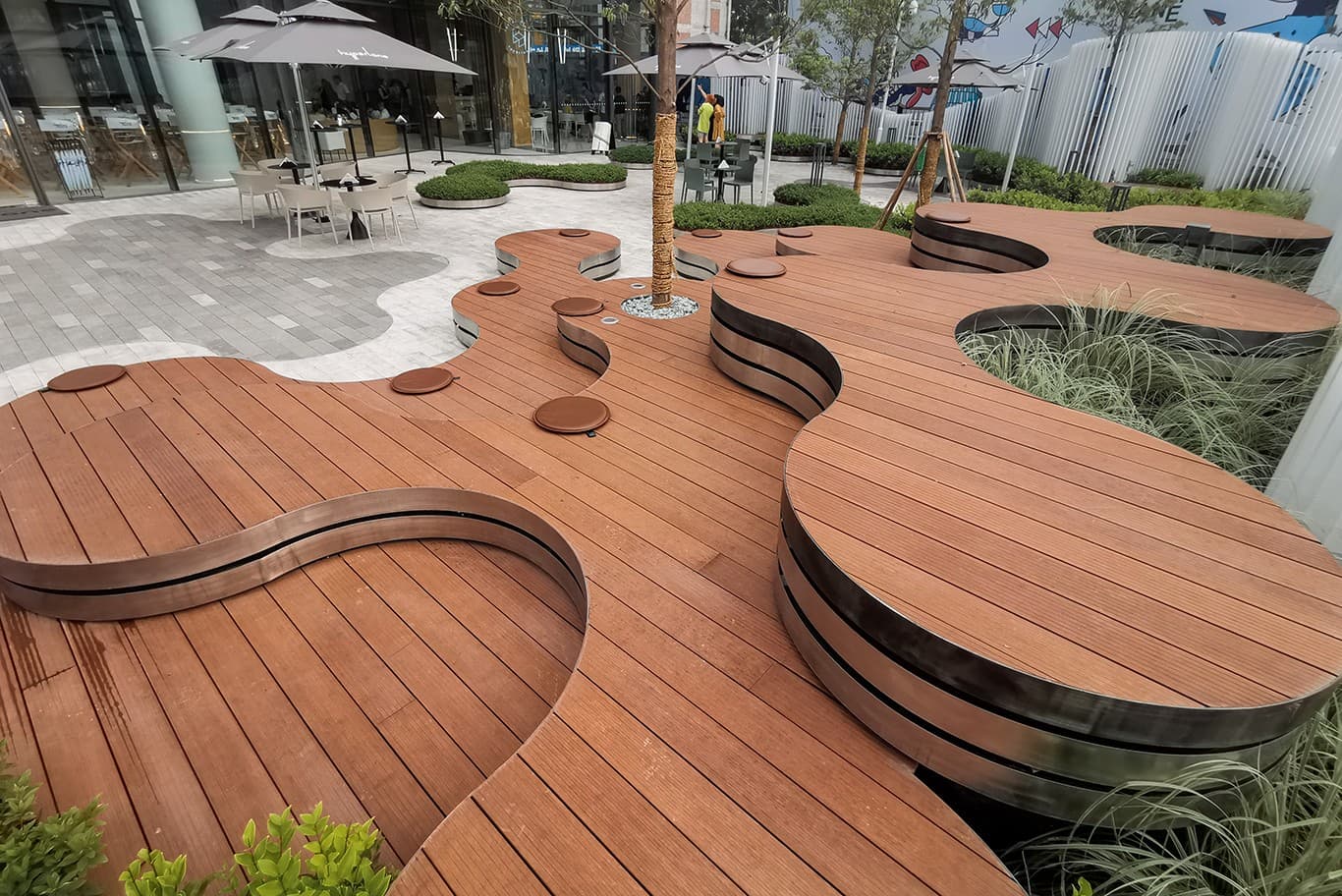

Hyperlane Chengdu

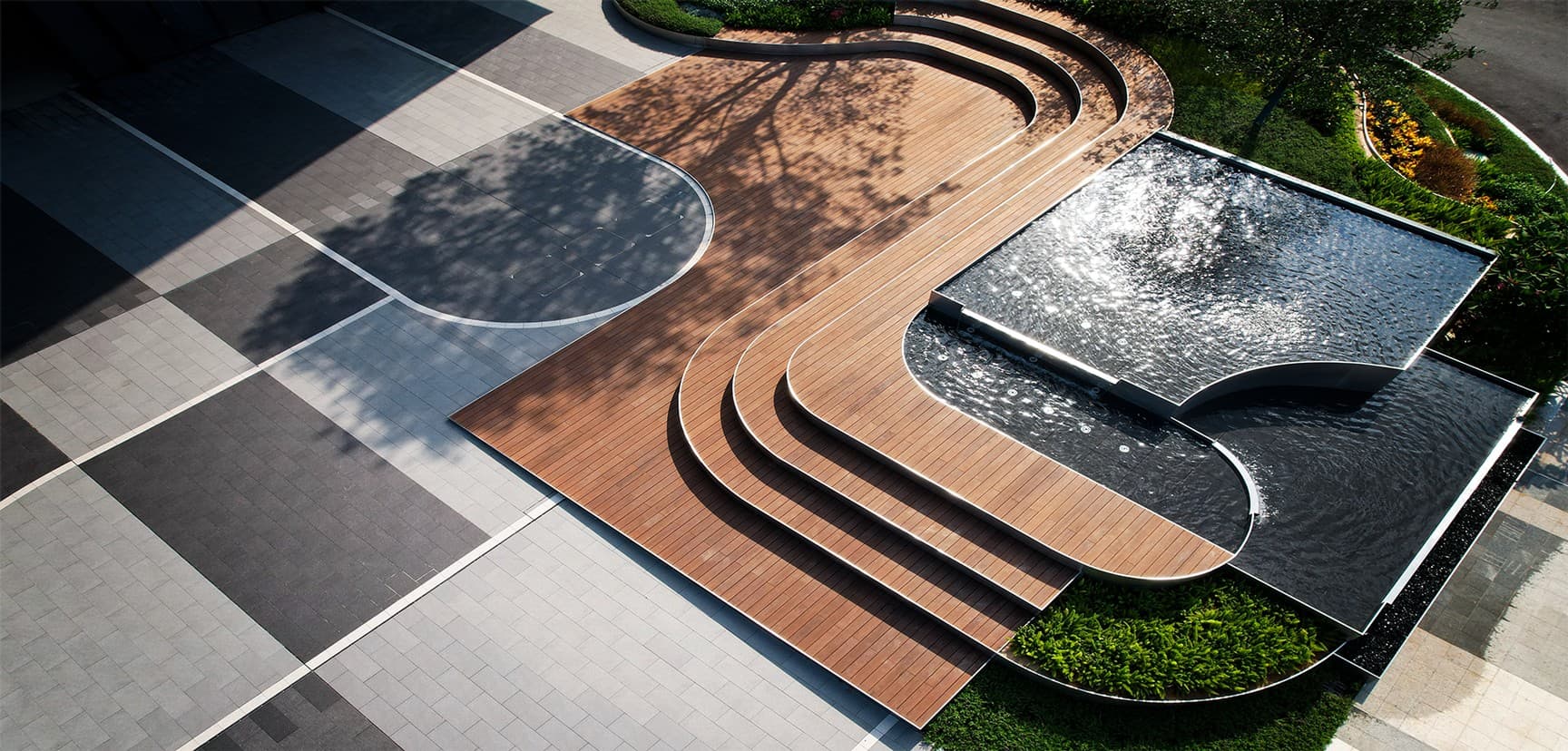

International BizPark

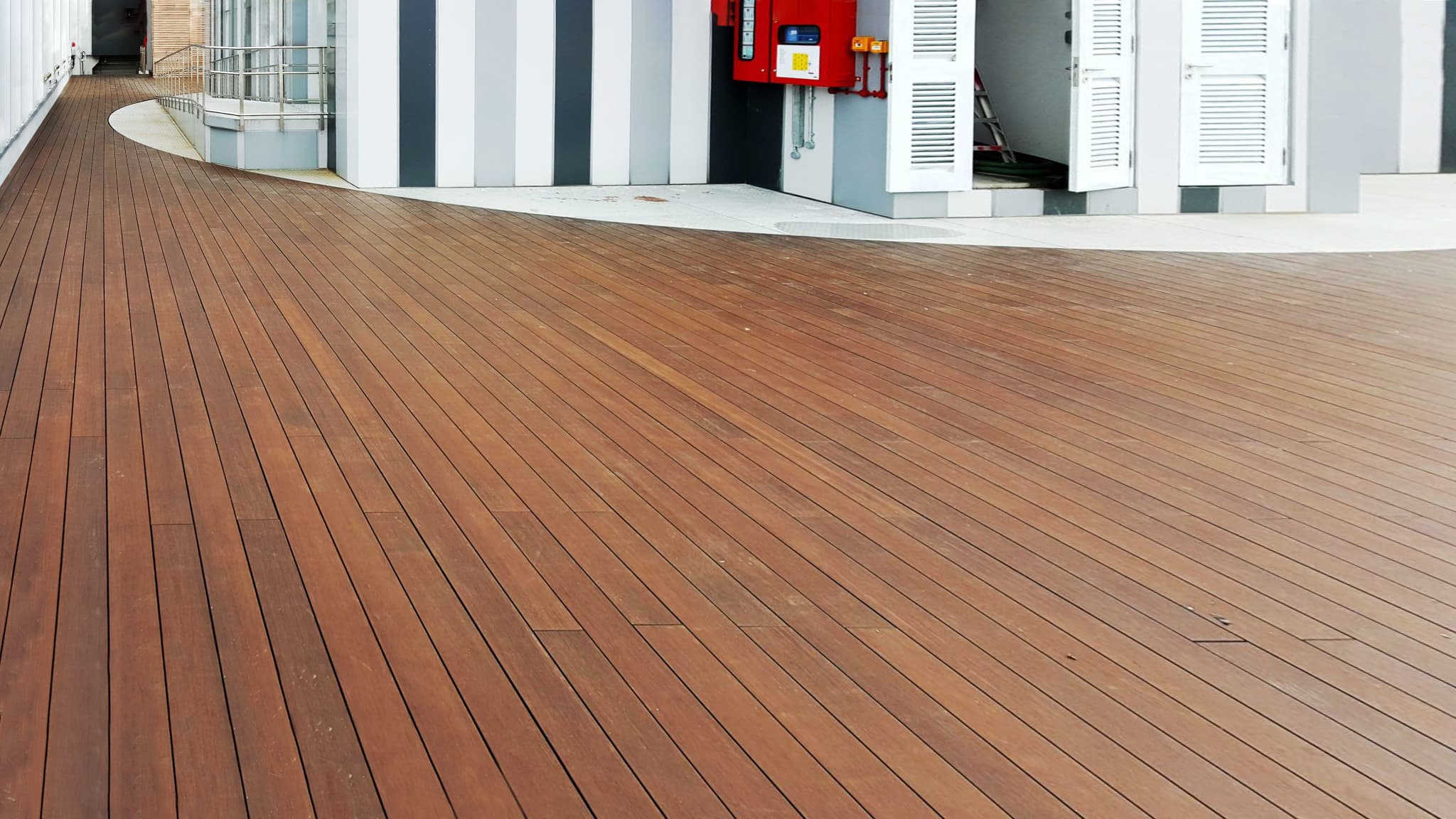

BCA Academy
Benefits
Description | Size |
---|---|

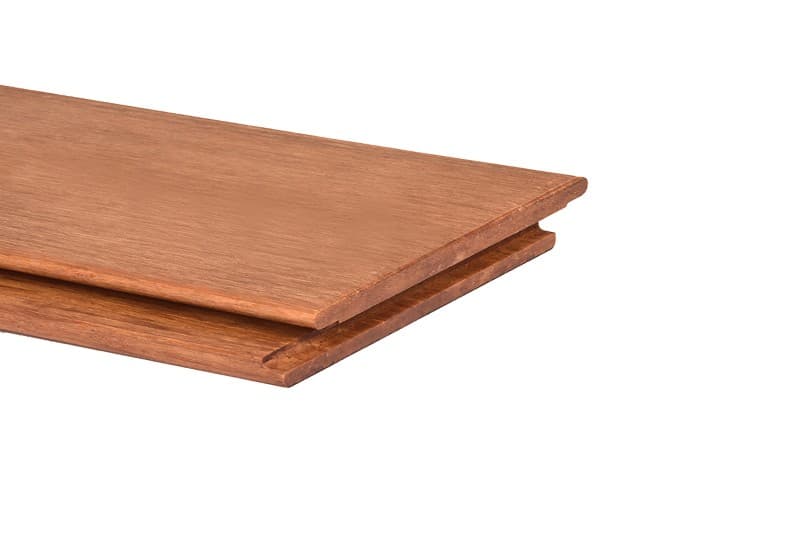

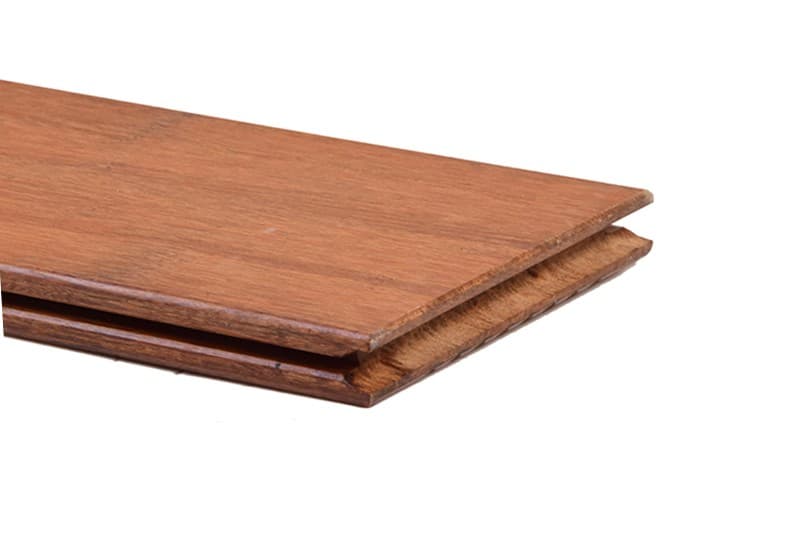

DassoCTECH outdoor oiled Soffit, T&G end match,T-12 | L1829 x W100 x T12 |

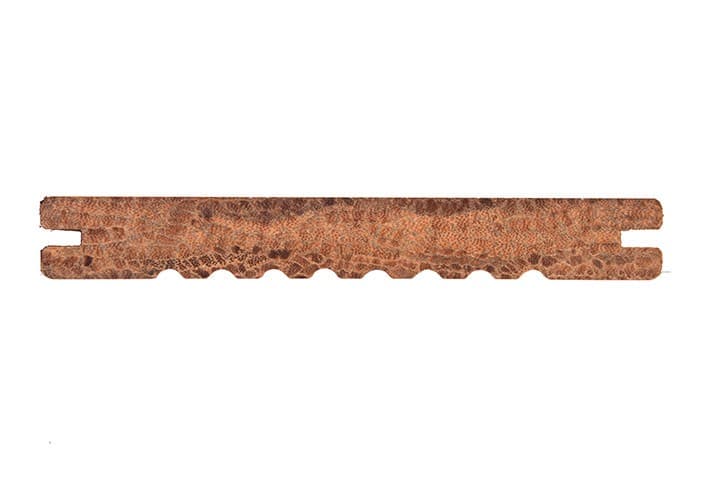

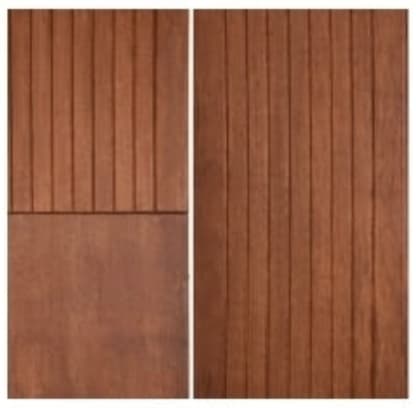

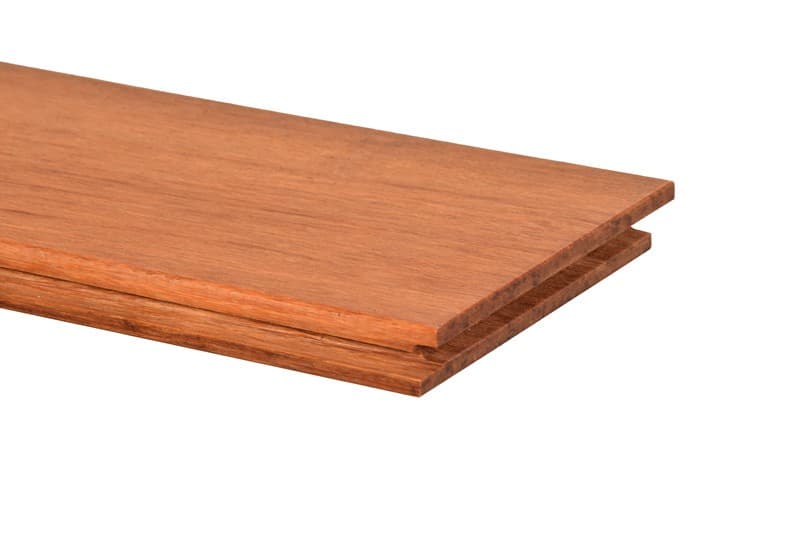

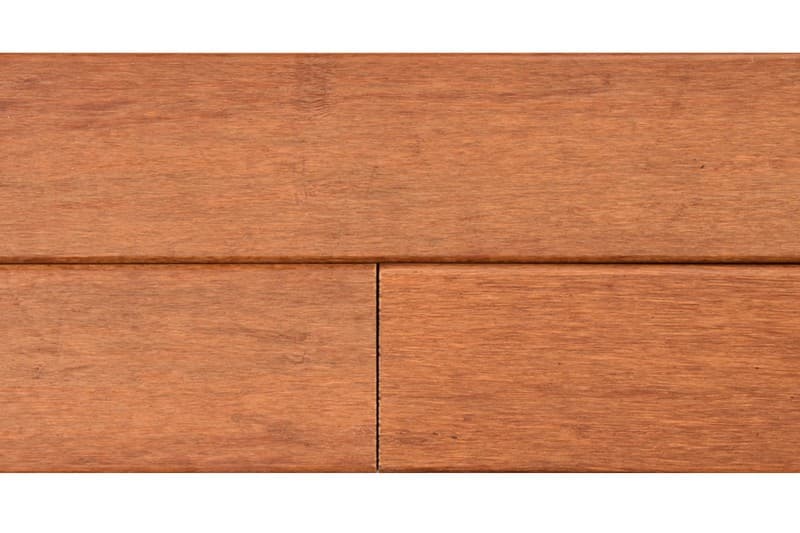

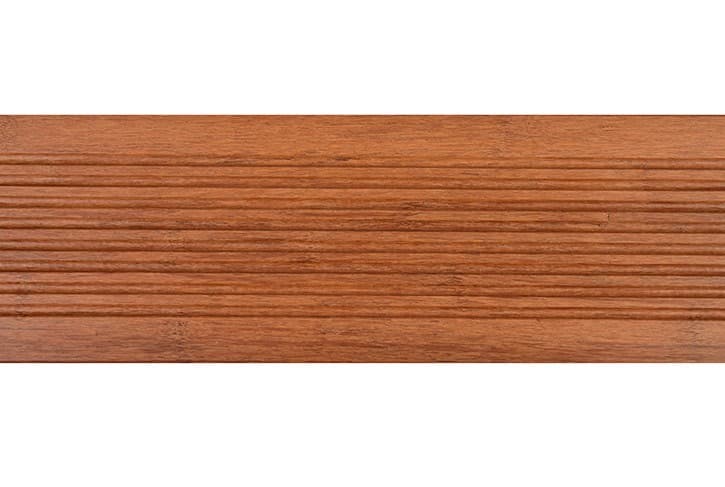

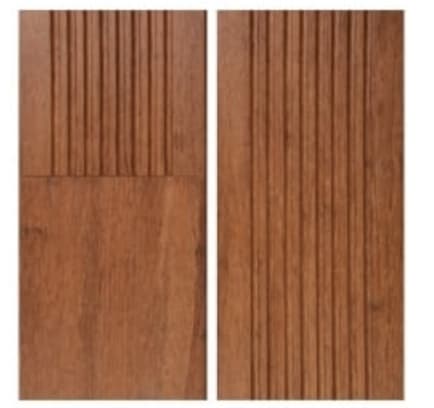

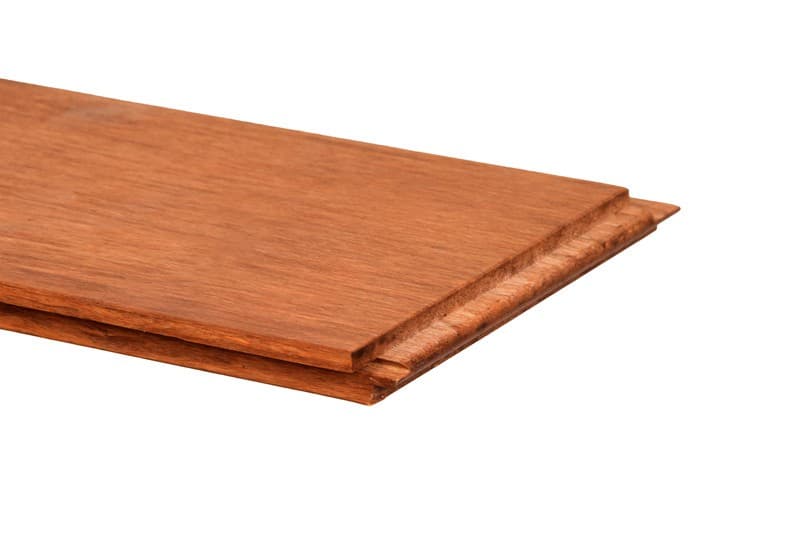

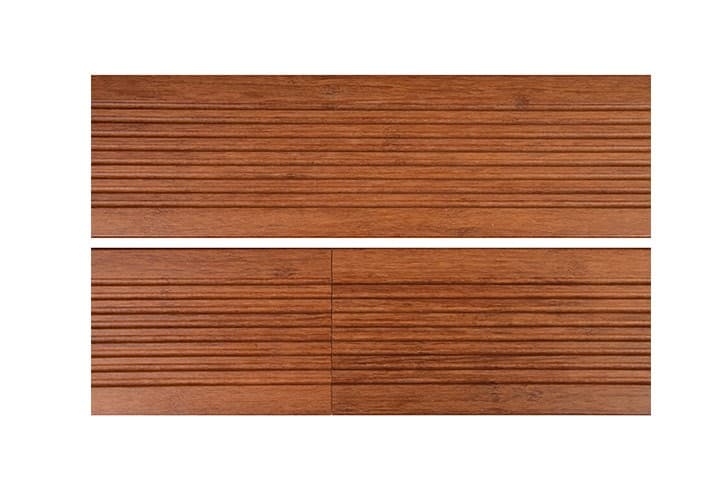

dassoCTECH outdoor oiled decking, Smooth & V-grooved, T-20 | L1850 x W137 x T20 |

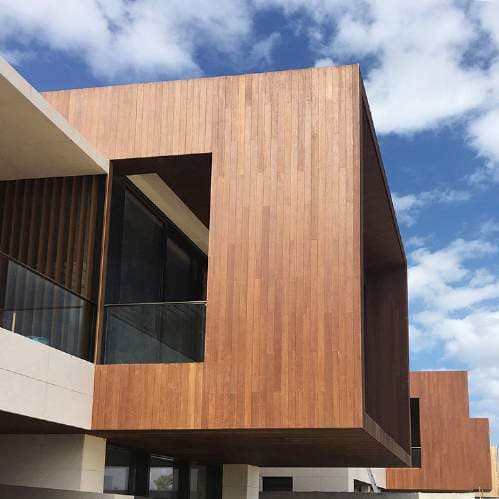

About Cladding
Cladding
DassoCTECH Fused Bamboo Cladding is the great choice in commercial exterior siding, where it ages naturally like wood.
Cladding Project Reference

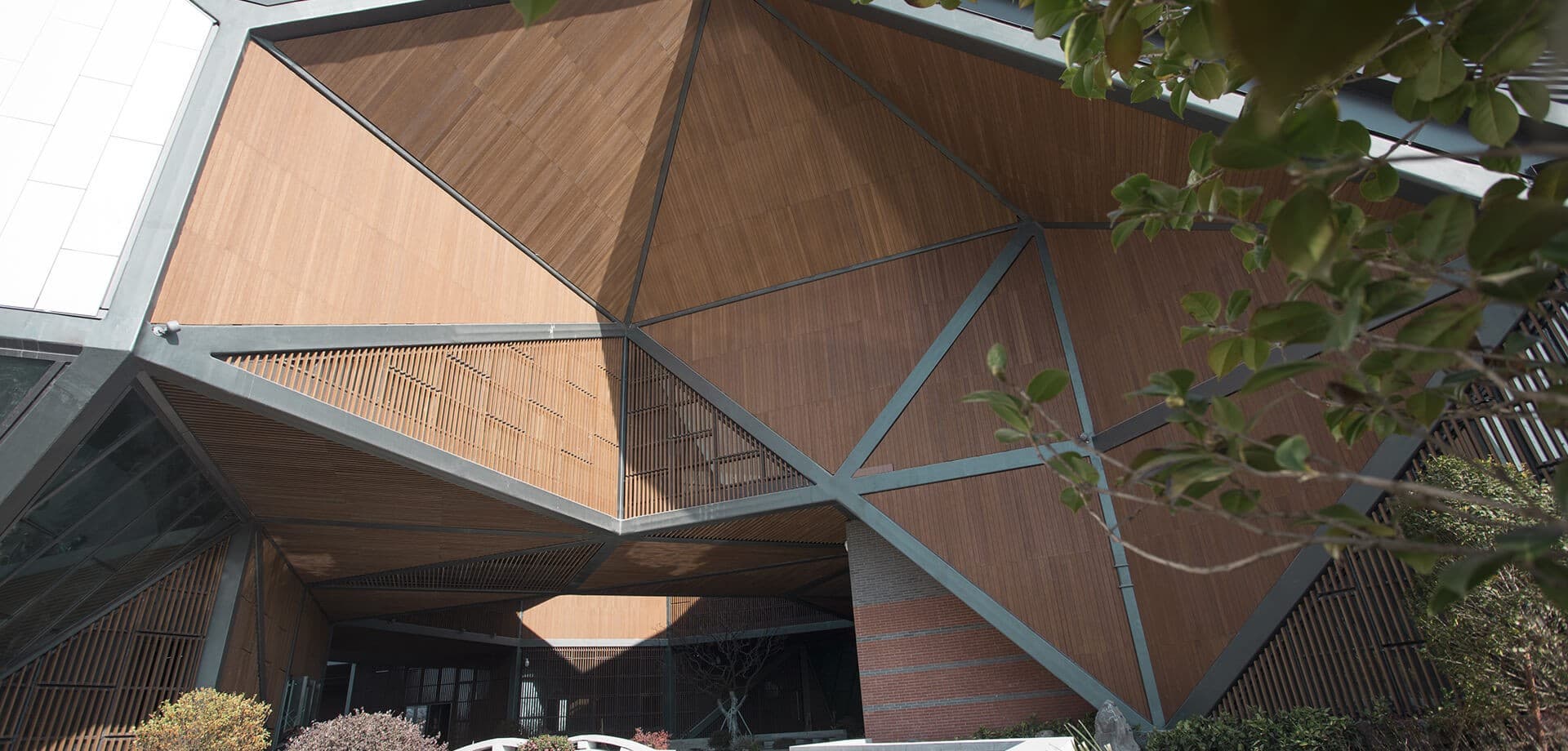

NanXun Urban Exhibition Center

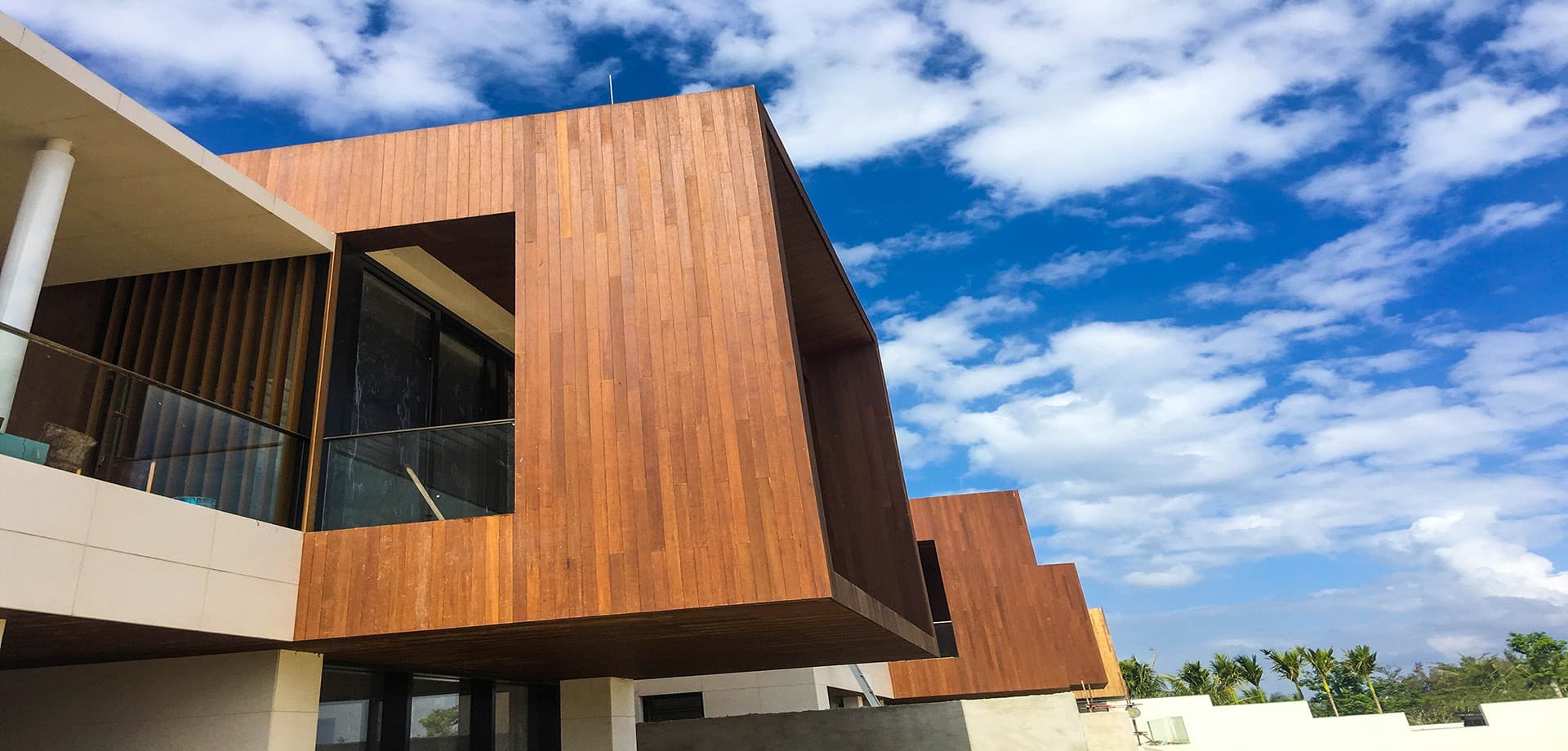

Four Season Courtyard Hotel

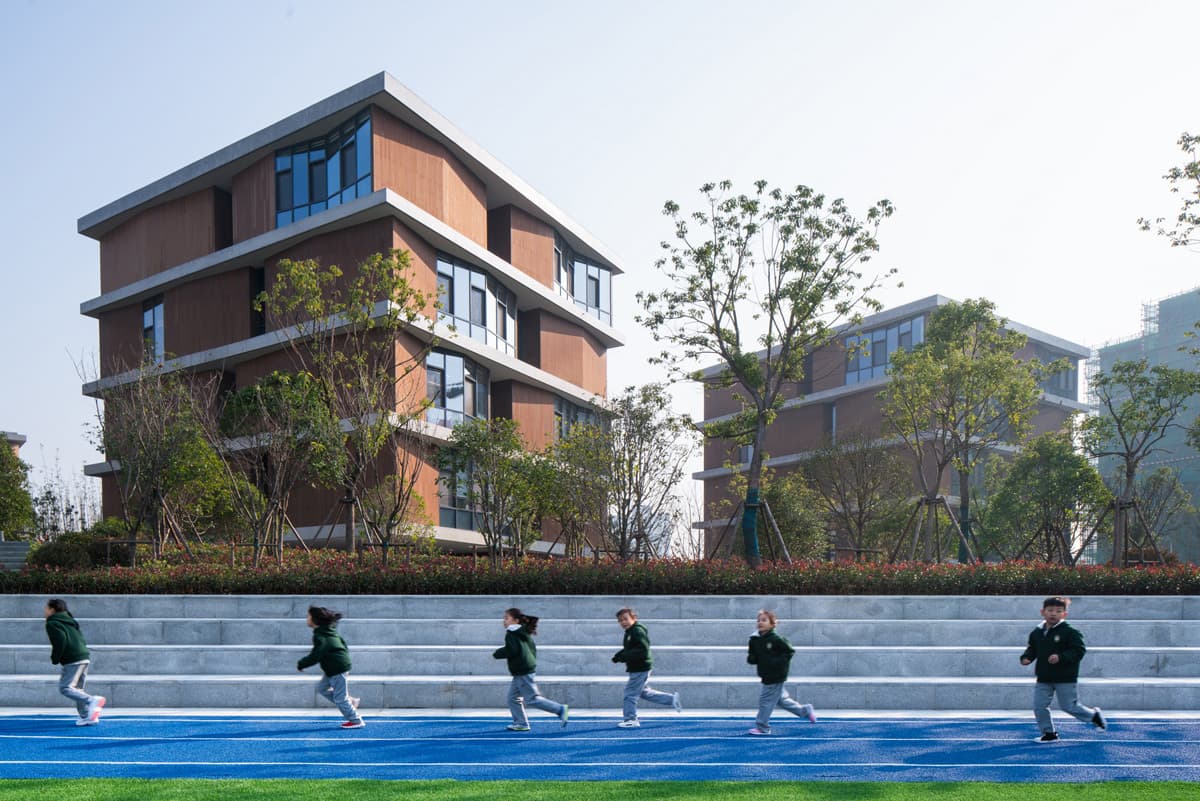

Qingpu Pinghe School
Benefits
Description | Size |
---|---|

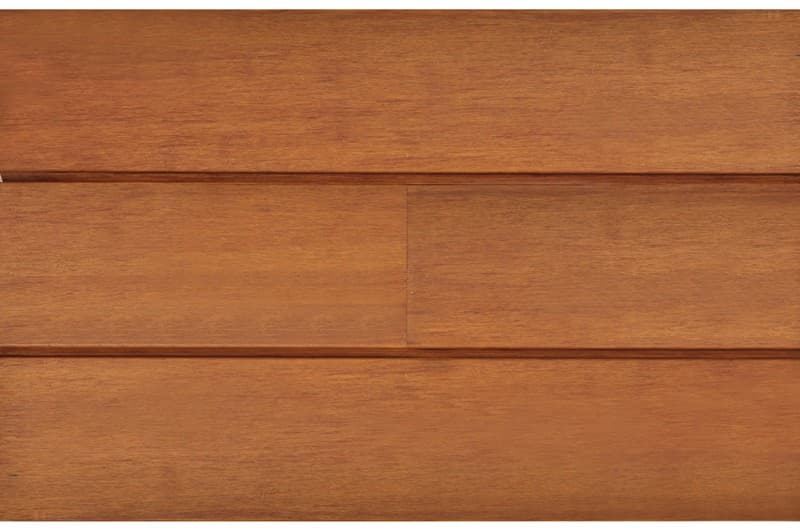

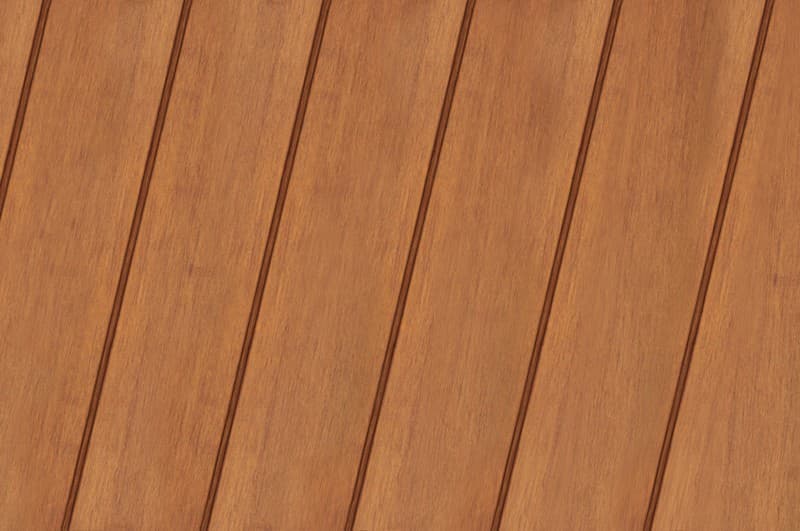

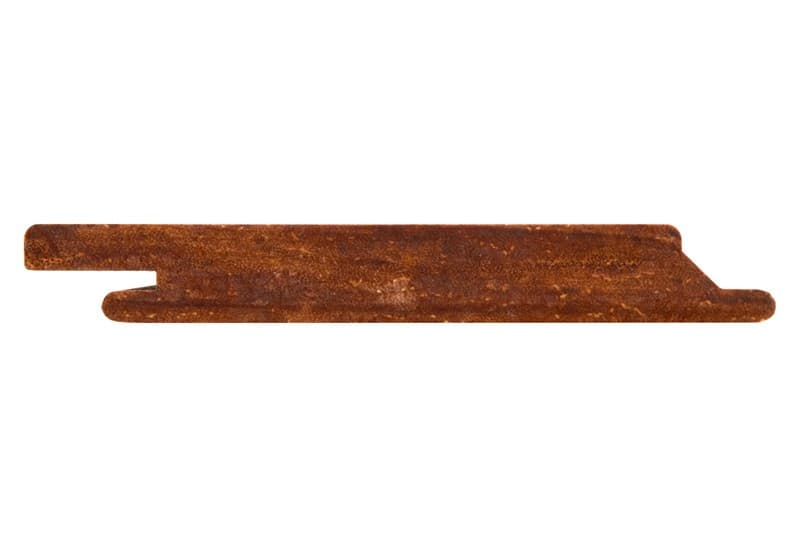

DassoCTECH Outdoor cladding with groove on length sides, oiled | L1860 x 100 x 12 |

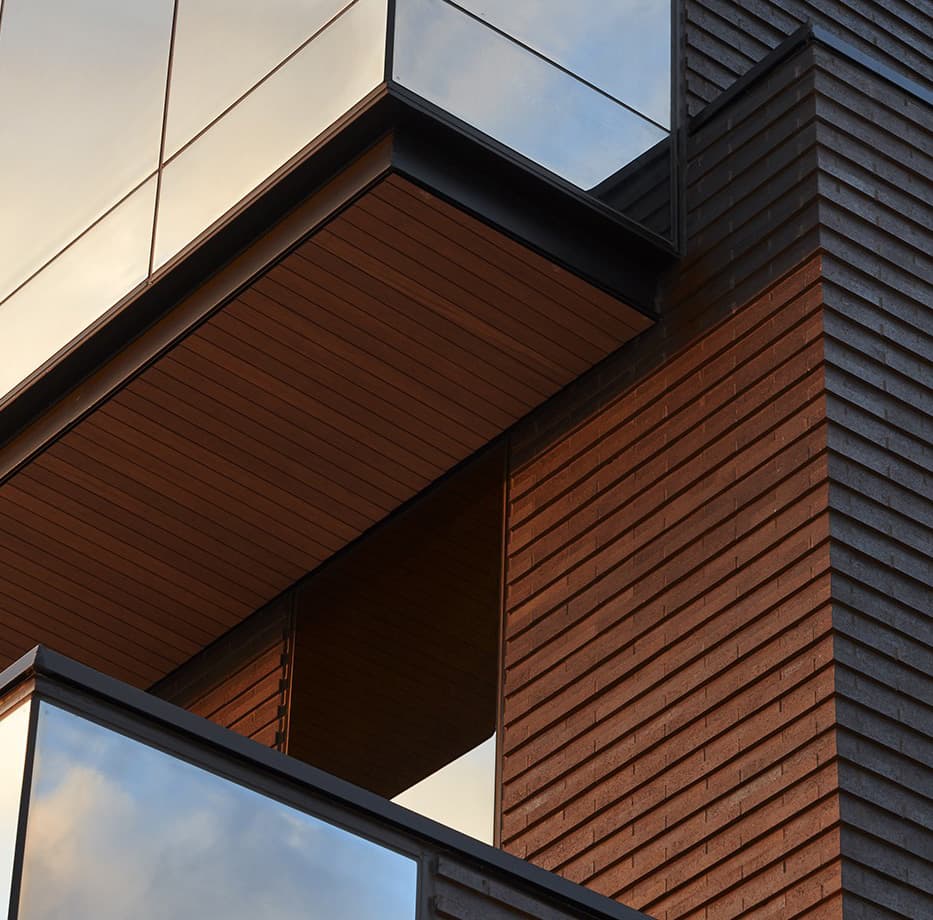

About Soffit
Soffit
DassoCTECH Soffit, Deck Skirting and Wainscoting are Pre-primed and specifically designed for interior and exterior use with no leaching and zero VOC.
Soffit Project Reference
Surfers View
Nashville Subway Police (LEED Silver)

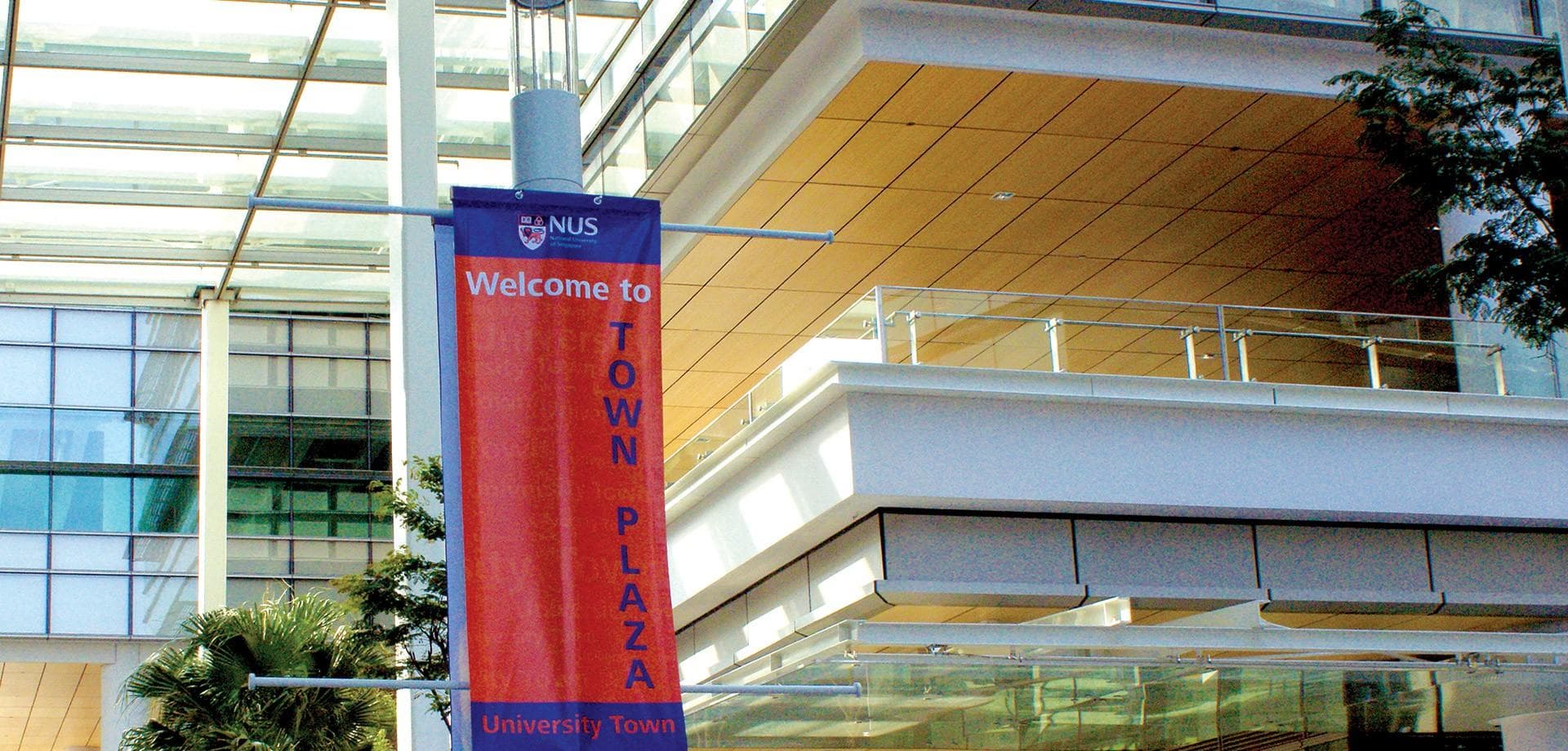

National University of Singapore
Benefits
Description | Size |
---|---|
DassoCTECH outdoor oiled Soffit, T&G end match,T-12 | L1829 x W100 x T12 |
